Solana Anchor Program IDL




The IDL (Interface Definition Language) is a JSON file that describes how to interact with a Solana program. It is automatically generated by the Anchor framework.


There is nothing special about the function called “initialize” — it’s a name Anchor picks. What we will learn in this tutorial is how the typescript unit tests are able to “find” the appropriate function.


Let’s create a new project called anchor-function-tutorial and change the name in the initialize function to boaty_mc_boatface, keeping everything else the same.

pub fn boaty_mc_boatface(ctx: Context<Initialize>) -> Result<()> {
    Ok(())
}

Now let’s change the test to the following

it("Call boaty mcboatface", async () => {
  // Add your test here.
  const tx = await program.methods.boatyMcBoatface().rpc();
  console.log("Your transaction signature", tx);
});

Now run the tests with anchor test --skip-local-validator


It runs as expected. So how did this sorcery work?


How do the tests know about the initialize function?

When Anchor builds a Solana program, it creates an IDL (Interface Definition Language).


This is stored in target/idl/anchor_function_tutorial.json. This file is called anchor_function_tutorial.json because anchor_function_tutorial is the name of the program. Note that anchor converted the dashes to underscores!


Let’s open it.

{
  "version": "0.1.0",
  "name": "anchor_function_tutorial",
  "instructions": [
    {
      "name": "boatyMcBoatface",
      "accounts": [],
      "args": []
    }
  ]
}

The list of “instructions” is the public facing functions that the program supports, roughly equivalent to the external and public functions on an Ethereum contract. An IDL file in Solana plays a similar role as the ABI file in Solidity, specifying how to interact with the program’s/contract’s.


We saw earlier that our function didn’t take any arguments, so that’s why the args list is empty. We’ll explain later what “accounts” is.


One thing that stands out: functions in Rust are snake_cased, but Anchor formats them in JavaScript land as camelCased. This is to respect the conventions of the languages: Rust tends to use snake case, and JavaScript typically uses camel case.

This JSON file is how the “methods” object knows what functions to support.

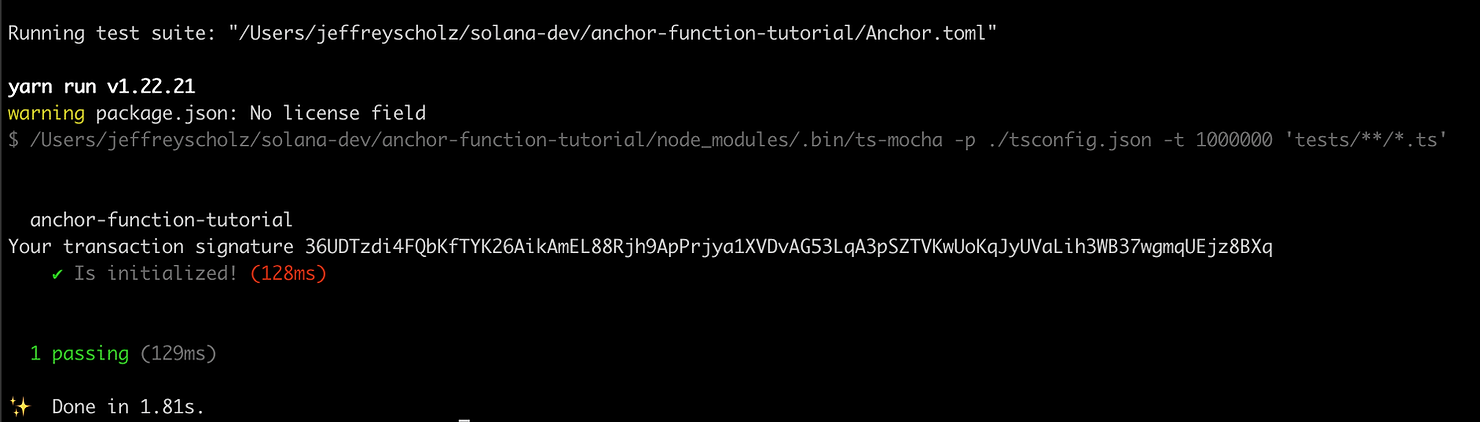

When we run the test, we expect it to pass, which means the test is correctly calling the Solana program:

solana test passes

Exercise: Add an argument to the boaty_mc_boatface function to receive a u64. Run anchor build again. Then open up the target/idl/anchor_function_tutorial.json file again. How does it change?


Now let’s start to create a Solana program that has functions for basic addition and subtraction which print the result. Solana functions cannot return values the way Solidity does, so we will have to print them. (Solana has alternative ways of passing values we will discuss later). Let’s create two functions like so:

pub fn add(ctx: Context<Initialize>, a: u64, b: u64) -> Result<()> {
  let sum = a + b;
  msg!("Sum is {}", sum);
	Ok(())
}

pub fn sub(ctx: Context<Initialize>, a: u64, b: u64) -> Result<()> {
  let difference = a - b;
  msg!("Difference is {}", difference);
	Ok(())
}

And change our unit tests to the following:

it("Should add", async () => {
  const tx = await program.methods.add(new anchor.BN(1), new anchor.BN(2)).rpc();
  console.log("Your transaction signature", tx);
});

it("Should sub", async () => {
  const tx = await program.methods.sub(
	new anchor.BN(10),
	new anchor.BN(3)).rpc();
  console.log("Your transaction signature", tx);
});

Exercise: Implement similar functions for mul, div, and mod, and write a unit test to trigger each one.


What about the Initialize struct?

Now there is another sneaky thing going on here. We’ve left the Initialize struct untouched and are reusing it between functions. Again, the name does not matter. Let’s change the struct name to Empty and re-run the test.

//...
  // Change struct name here
	pub fn add(ctx: Context<Empty>, a: u64, b: u64) -> Result<()> {
	    let sum = a + b;
	    msg!("Sum is {}", sum);
	    Ok(())
	}
//...

// Change struct name here too
#[derive(Accounts)]
pub struct Empty {}

Again, the name Empty is totally arbitrary here.


Exercise: Change the struct name Empty to BoatyMcBoatface and re-run the tests.


What is #[derive(Accounts)] struct?

This # syntax is a Rust attribute defined by the Anchor framework. We will explain this further in a later tutorial. For now, we want to pay attention to the accounts key in the IDL and how it relates to the struct defined in the program.


Accounts IDL key

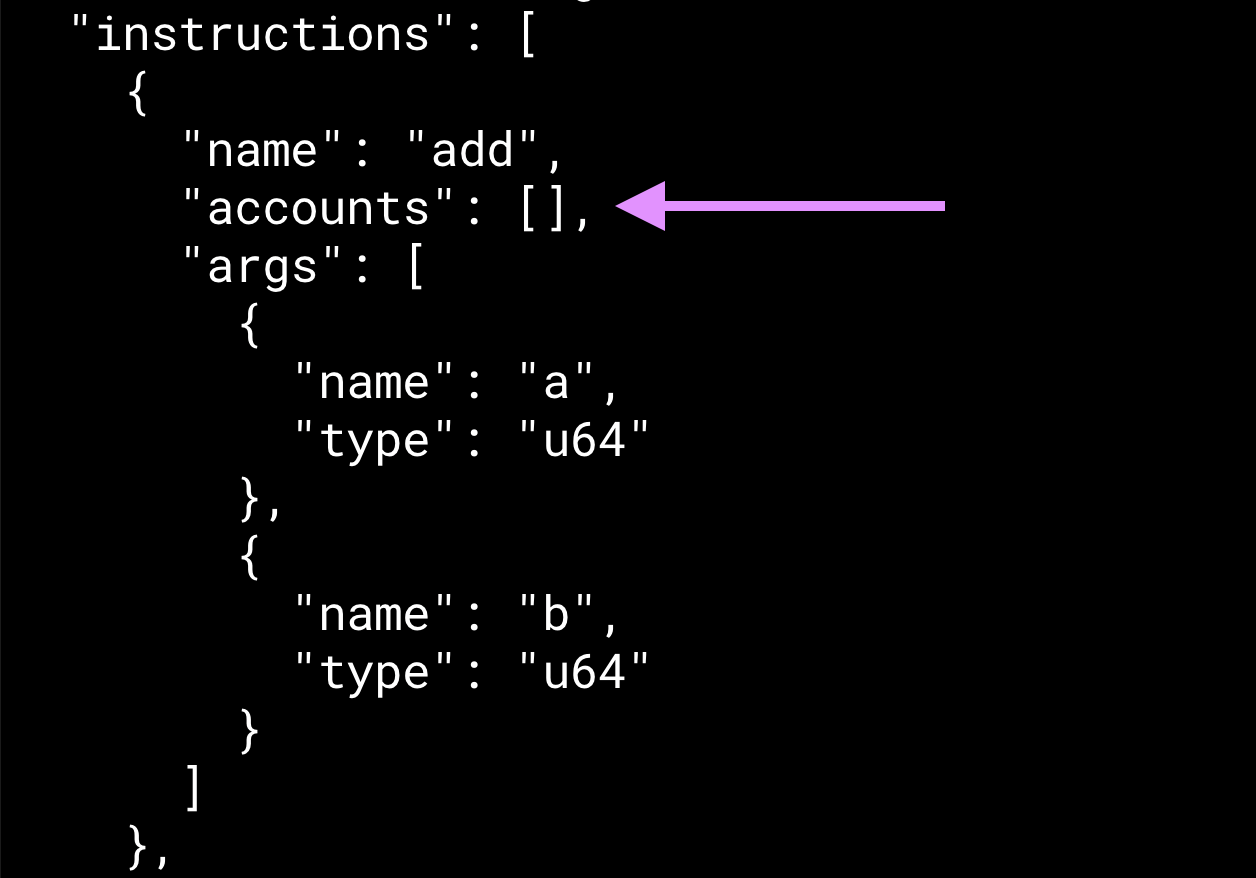

Below we screenshot the IDL of our program above. So we can see the relationship between the “Accounts” in that Rust Attribute #[derive(Accounts)] and the “accounts” key in the IDL:

solana anchor idl

In our example, the accounts key in the JSON IDL above marked by the purple arrow is empty. But that is not the case for most useful Solana transactions as we will learn later.


Because our account struct for BoatyMcBoatface is empty, the accounts list in the IDL is empty also.


Now let’s see what happens when the struct is non-empty. Copy the code below and replace the contents of lib.rs.

use anchor_lang::prelude::*;

declare_id!("8PSAL9t1RMb7BcewhsSFrRQDq61Y7YXC5kHUxMk5b39Z");

#[program]
pub mod anchor_function_tutorial {
    use super::*;

    pub fn non_empty_account_example(ctx: Context<NonEmptyAccountExample>) -> Result<()> {
        Ok(())
    }
}

#[derive(Accounts)]
pub struct NonEmptyAccountExample<'info> {
    signer: Signer<'info>,
    another_signer: Signer<'info>,
}

Now run anchor build - let’s see what we get back in the new IDL.

{
  "version": "0.1.0",
  "name": "anchor_function_tutorial",
  "instructions": [
    {
      "name": "nonEmptyAccountExample",
      "accounts": [
        {
          "name": "signer",
          "isMut": false,
          "isSigner": true
        },
        {
          "name": "anotherSigner",
          "isMut": false,
          "isSigner": true
        }
      ],
      "args": []
    }
  ],
  "metadata": {
    "address": "8PSAL9t1RMb7BcewhsSFrRQDq61Y7YXC5kHUxMk5b39Z"
  }
}

Note that “accounts” is no longer empty and is populated with the fields from the struct: “signer” and “anotherSigner” (note that another_signer got transformed from snake case into camel case). The IDL has been updated to match the struct we just changed, specifically with the number of accounts we added.


We’ll dive further into the “Signer” in an upcoming tutorial, but for now you can think of it as analogous to tx.origin in Ethereum.


A second example of a program and an IDL.

To summarize everything we’ve learned so far, let’s build another program with different functions and Account structs.

use anchor_lang::prelude::*;

declare_id!("8PSAL9t1RMb7BcewhsSFrRQDq61Y7YXC5kHUxMk5b39Z");

#[program]
pub mod anchor_function_tutorial {
    use super::*;

    pub fn function_a(ctx: Context<NonEmptyAccountExample>) -> Result<()> {
        Ok(())
    }

    pub fn function_b(ctx: Context<Empty>, firstArg: u64) -> Result<()> {
        Ok(())
    }
}

#[derive(Accounts)]
pub struct NonEmptyAccountExample<'info> {
    signer: Signer<'info>,
    another_signer: Signer<'info>,
}

#[derive(Accounts)]
pub struct Empty {}

Now build it with anchor build

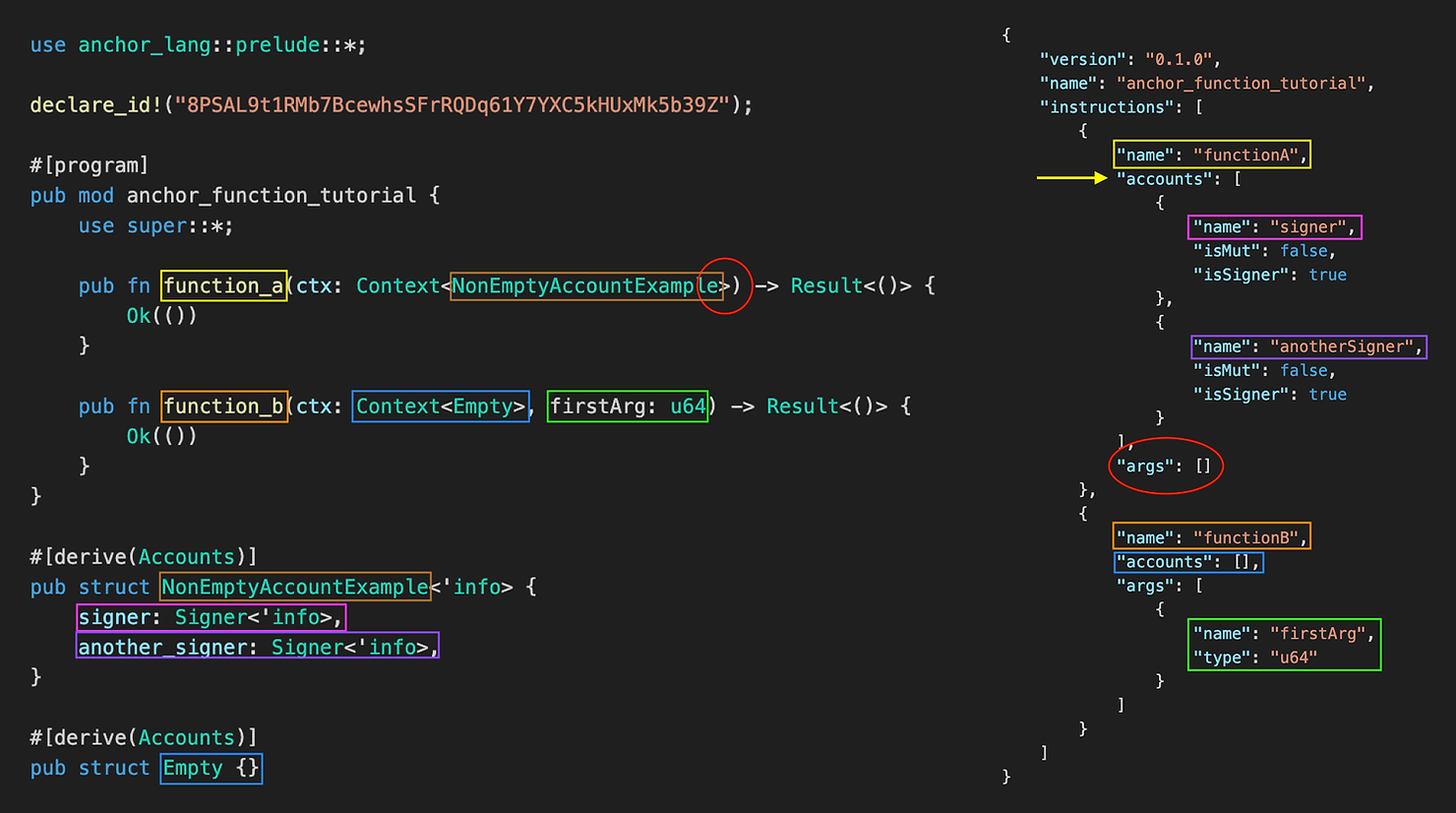

Let’s look again at the IDL file target/idl/anchor_function_tutorial.json and place these files side by side:

idl side by side with solana program

Can you see the relationship between the IDL file and the program above?

The function function_a has no arguments and this shows in the IDL as an empty array under the args key.


It's Context takes the NonEmptyAccountExample struct. This struct NonEmptyAccountExample has two signer fields: signer and another_signer. Note that these are repeated as elements in the account key in the IDL for function_a. You can see that Anchor translated Rust's snake case to camel case in the IDL.


The function function_b takes an u64 argument. Its context struct is empty, so the accounts key in IDL for function_b is an empty array.


In general, we expect the array of items in the IDL's accounts key to match the keys of the account struct that the function takes in its ctx argument.


Summary

In this chapter:

  • We learned Solana uses an IDL (iInterface Definition Language) to show how to interact with a Solana program and what fields appear in the IDL.

  • We introduced the struct modified by #[derive(Accounts)] and how it relates to function arguments.

  • Anchor interprets snake_case functions in Rust as camelCase functions in the Typescript tests.
